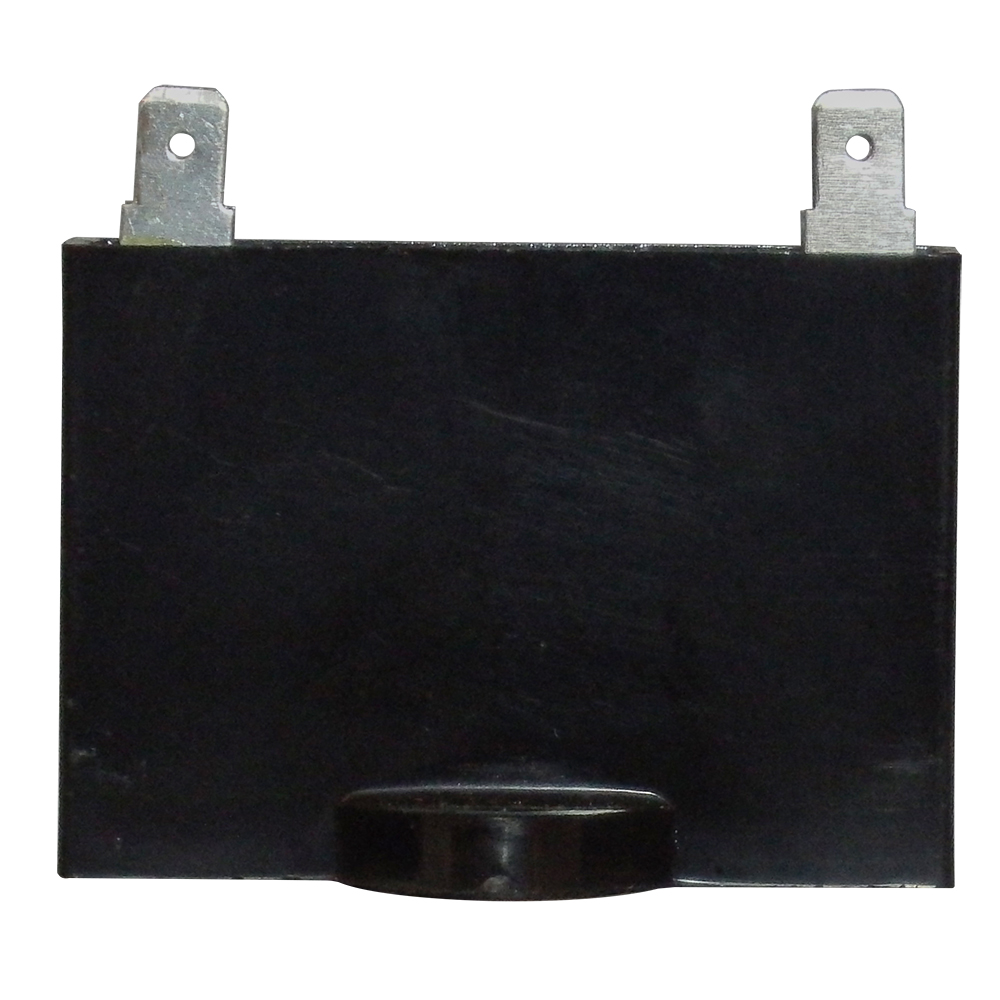

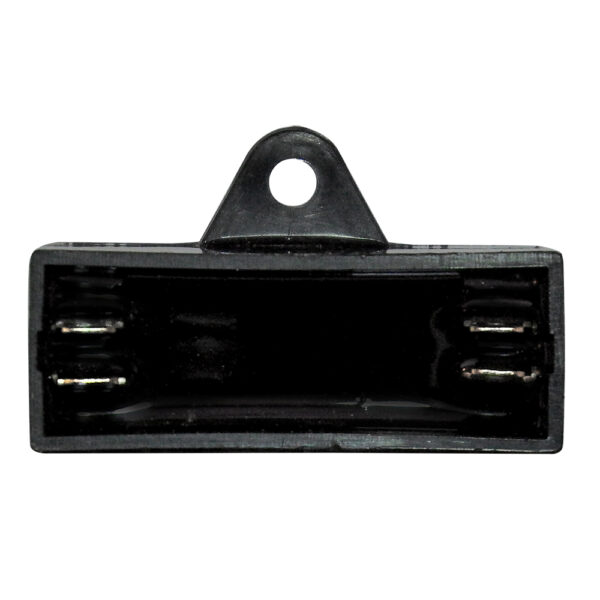

3.5 MFD x 450 Run/Start Capacitor # 12385
SKU: 12385
Type: Mini-Split Capacitor
Brand: Universal
Shape: Rectangle
Replaces: MARS, SUPCO
Capacitance: 3.5
VAC: 450
$6.45
Replaces / Supersedes: PFSCF3.5 CBB61 12385 685744123859 8532250020 RC3.5 RC3.5X450 Aexit Deal Mux Xunda QE and other Mini Split Capacitors with matching specifications
Overview
Our mini-split motor run capacitors are epoxy/resin sealed and widely used as the start-up and/or run capacitor for your motors in Ceiling Fans , Mini-Splits and more. They feature very small dissipation factor and inherent temperature rise, high insulation resistance, and stable capacitance.
Features
- Ambient temperature: 70° C
- Epoxy/Resin Sealed , Plastic Case
- ALL Capacitors are Individually Boxed
- 1/4″ Quick Disconnect Terminals
- Capacitance tolerance: ±5
- Standard: IEC252-2001
WARNING: CA Residents: Prop 65 Warning(s) – Click Here for More Information
Additional Products Available , Contact Us for More Information
